Crawler excavatorZoomlion crawler excavator

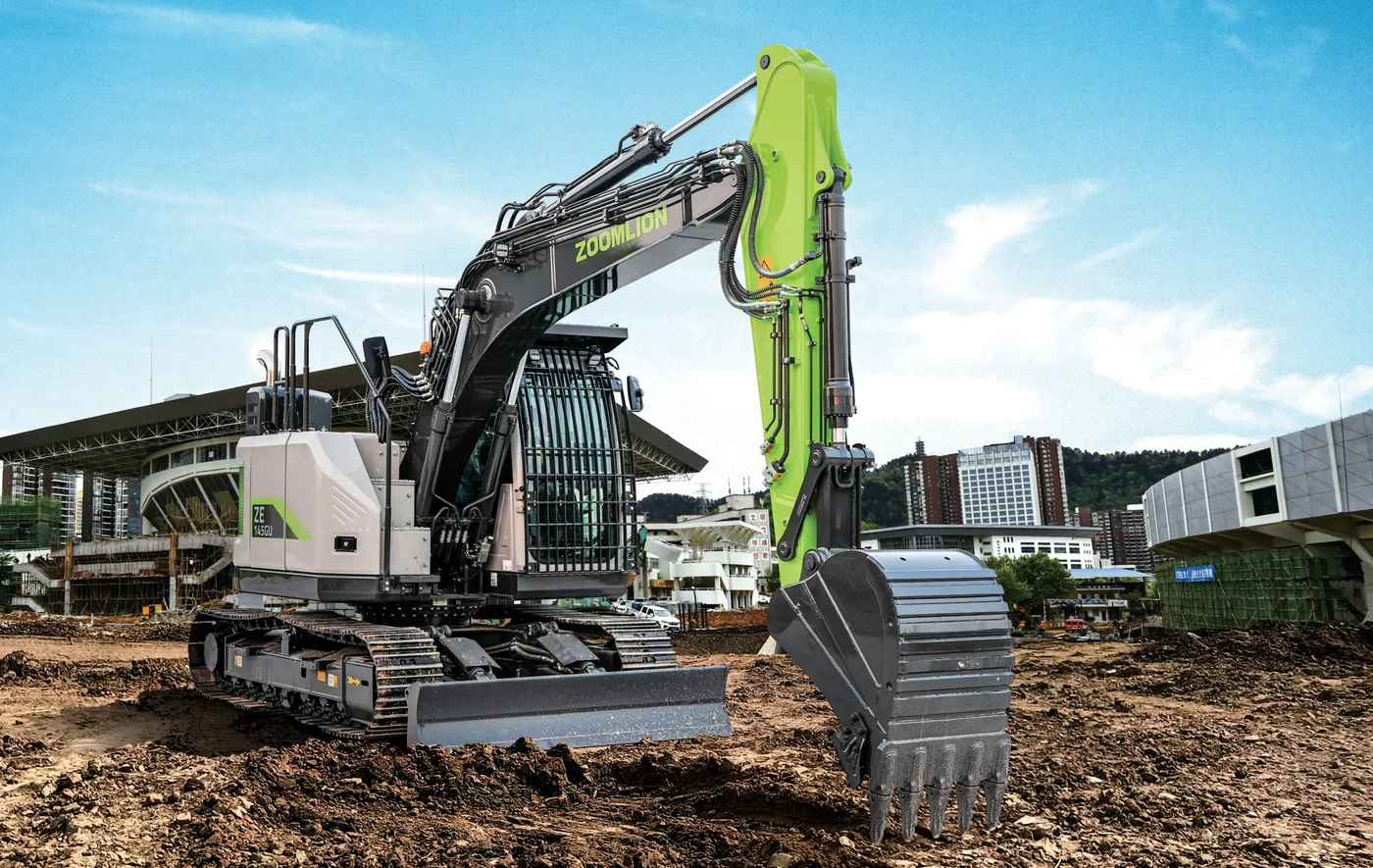

ZE145GU Crawler Excavator
A 15-tonne short-tail crawler excavator with a 90 kW Cummins Stage V engine, ROPS cab, 5.5 m dig depth and 8.4 m reach.
Price (excl. VAT)
€92,000 + VAT
Finance available · Delivered across Ireland
Overview
The Zoomlion ZE145GU is a 15-tonne class crawler excavator (15,800 kg operating weight) for groundworks, roadworks, drainage and general construction. Its short tail swing radius of 1,490 mm keeps the counterweight close to the tracks, so it works in tighter spaces than a conventional machine of its size.
Power comes from a customised Cummins F3.8 engine rated at 90 kW at 2,200 rpm, with high-pressure common-rail injection, meeting EPA T4F / EU Stage V. Zoomlion's full electronic control and dual-pump power control (2 × 127.5 L/min) cut throttling losses and fuel use. It digs to 5,505 mm, reaches 8,410 mm and delivers 108 kN of bucket digging force.
The G-series cab is ROPS certified, with large reinforced glass, a 135 mm-stroke suspension seat, a large touch screen, high-power air conditioning and a rear-view camera as standard. The fuel, oil, air, pilot and A/C filters are all reachable from ground level for quick daily maintenance.
Key features
- Customised Cummins F3.8 engine, 90 kW, EU Stage V
- Short tail swing: 1,490 mm radius
- ROPS-certified G-series cab with rear-view camera as standard
- 108 kN bucket and 69 kN arm digging force
- Two variable piston pumps, 2 × 127.5 L/min
- Ground-level access to every daily service filter
Specifications
Manufacturer figures for the Zoomlion ZE145GU.
| Basic technical data | |
|---|---|
| Operating weight | 15,800 kg |
| Bucket capacity range | 0.1 – 0.6 m³ |
| Standard bucket | 0.6 m³ reinforced |
| Engine | |
| Brand | Cummins |
| Model | F3.8 |
| Rated power | 90 kW @ 2,200 rpm |
| Displacement | 3.8 L |
| Emission standard | EPA T4F / EU Stage V |
| Hydraulic system | |
| Main pump | Two variable displacement piston pumps, max. flow 2 × 127.5 L/min |
| Pilot pump | One gear pump, max. flow 17 L/min |
| Max. pressure: equipment | 34.3 MPa |
| Max. pressure: swing | 25 MPa |
| Max. pressure: travel | 34.3 MPa |
| Max. pressure: boost | 37 MPa |
| Max. pressure: pilot system | 3.9 MPa |
| Upper frame | |
| Max. swing speed | 12 r/min |
| Max. swing torque | 39 kN·m |
| Undercarriage | |
| Carrier rollers (each side) | 1 (two-side supported track rollers) |
| Track rollers (each side) | 7 |
| Idlers (each side) | 1 |
| Travel speed (high / low) | 5.4 / 3.0 km/h |
| Max. drawbar pull | 130 kN |
| Gradeability | 70% |
| Work equipment | |
| Boom length | 4,600 mm |
| Arm length | 2,500 mm |
| Bucket digging force | 108 kN |
| Arm digging force | 69 kN |
| Overall dimensions | |
| Overall length (to counterweight) | 7,395 mm |
| Overall length (to dozer) | 8,110 mm |
| Overall width (including handrail) | 2,500 mm |
| Overall width (track) | 2,490 mm |
| Overall height | 2,955 mm |
| Track gauge | 1,990 mm |
| Length of track on ground | 2,920 mm |
| Working range | |
| Max. digging height | 9,390 mm |
| Max. digging depth | 5,505 mm |
| Max. digging reach | 8,410 mm |
| Tail swing radius | 1,490 mm |
| Front minimum swing radius | 2,165 mm |
| Service refill capacities | |
| Fuel tank | 200 L |
| Engine coolant | 27 L |
| Engine oil | 12 L |
| Swing drive | 1.8 L |
| Final drive (each side) | 2.2 L |
| Hydraulic system | 130 L |
| Hydraulic tank | 145 L |
| Price | |
| Price | €92,000 + VAT |
Zoomlion ZE145GU: questions
How much is the Zoomlion ZE145GU in Ireland?
The Zoomlion ZE145GU crawler excavator is €92,000 + VAT from O'Regan Plant Sales. Attachments, delivery and finance are quoted on request: call 021 488 9800 or send an enquiry.
Where can I buy the Zoomlion ZE145GU in Ireland?
O'Regan Plant Sales at Watergrasshill Business Park, Co. Cork sells the Zoomlion ZE145GU and delivers it anywhere in Ireland.
What is the operating weight of the Zoomlion ZE145GU?
The Zoomlion ZE145GU has an operating weight of 15,800 kg. Full manufacturer figures are in the specifications table and spec sheet on this page.
Who services the Zoomlion ZE145GU?
O'Regan Plant Sales services and supplies genuine parts for the Zoomlion machines it sells, from its depot in Co. Cork.
