Mini excavatorZoomlion mini excavator
ZE20G Mini Excavator
A 2-tonne mini excavator with an enclosed cab, Kubota Stage V engine, 980 / 1,300 mm adjustable undercarriage and 2.55 m dig depth.
Price (excl. VAT)
€21,500 + VAT
Finance available · Delivered across Ireland
Overview

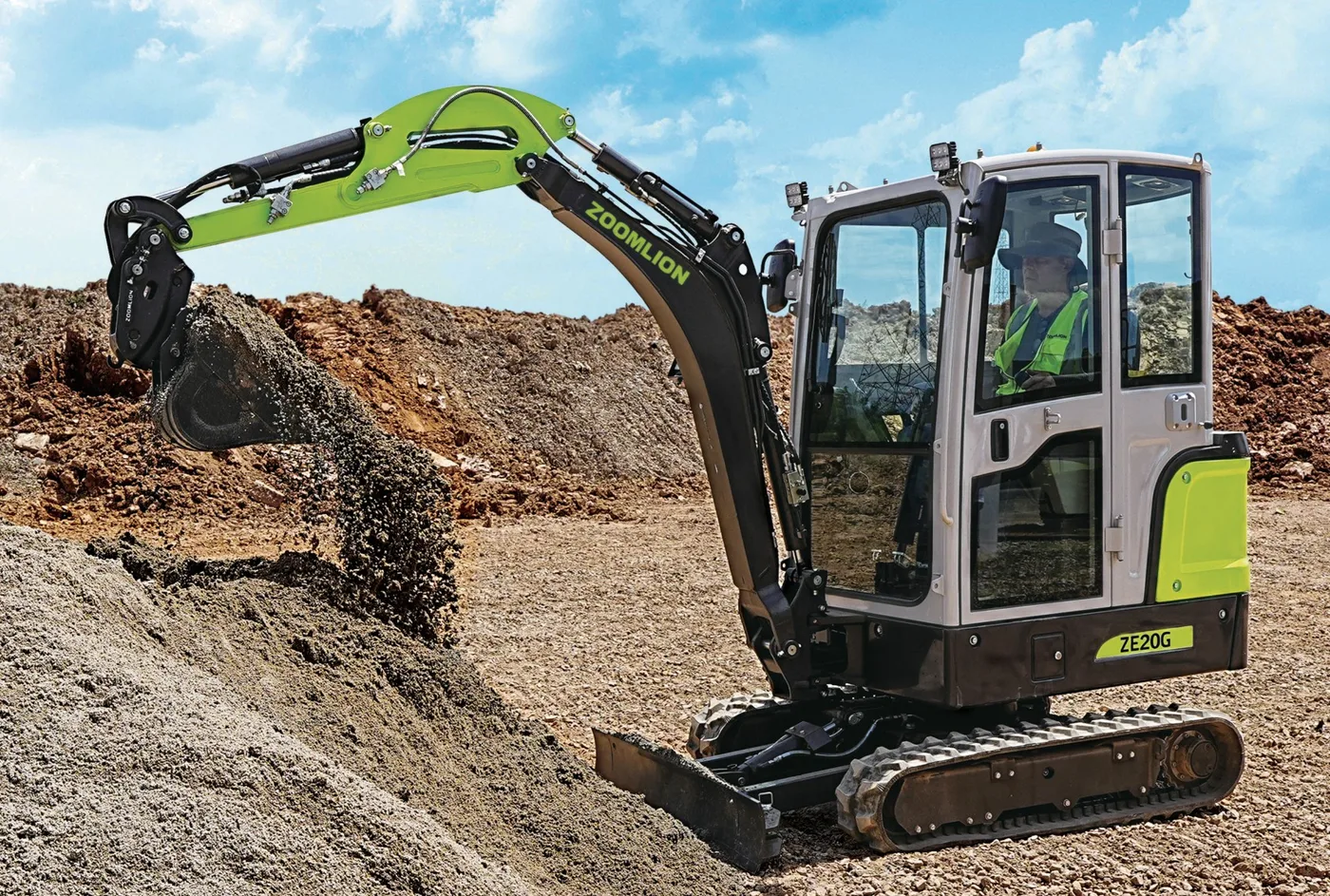

The Zoomlion ZE20G is a 2-tonne class crawler excavator (1,970 kg operating weight) with a fully enclosed cab, for landscaping, trenching, utilities and all-weather work on tight sites. Its undercarriage has two widths, 980 mm and 1,300 mm (track gauge 750 / 1,070 mm): narrow to get through gates and between buildings, wide for stability when digging.
A Kubota D1105 engine rated at 15.4 kW at 2,400 rpm and certified to EU Stage V / Tier 4F powers it. It digs to 2,555 mm, reaches 4,130 mm and dumps at up to 2,550 mm, with 18 kN of bucket digging force, and travels at up to 4.2 km/h.
Key features
- Fully enclosed operator's cab
- Kubota D1105 engine, 15.4 kW, EU Stage V / Tier 4F
- Two-width undercarriage: 980 mm or 1,300 mm
- 18 kN bucket digging force
- 2,555 mm max. digging depth, 4,130 mm max. reach
- Two-speed travel: 4.2 / 2.2 km/h
Specifications
Manufacturer figures for the Zoomlion ZE20G.
| Basic technical data | |
|---|---|
| Operating weight | 1,970 kg |
| Standard bucket capacity | 0.04 m³ |
| Slewing speed | 9.5 r/min |
| Travel speed (high / low) | 4.2 / 2.2 km/h |
| Max. drawbar pull | 16.6 kN |
| Bucket digging force | 18 kN |
| Stick digging force | 8.5 kN |
| Engine | |
| Engine | Kubota D1105 |
| Rated power | 15.4 kW @ 2,400 rpm |
| Displacement | 1.123 L |
| Emission standard | EU Stage V / Tier 4F |
| Dimensions | |
| Length | 3,885 mm |
| Width | 980 / 1,300 mm |
| Height | 2,310 mm |
| Boom length | 1,830 mm |
| Stick length | 1,190 mm |
| Tail slewing radius | 1,100 mm |
| Track gauge | 750 / 1,070 mm |
| Length of track on ground | 1,240 mm |
| Operating range | |
| Max. digging reach | 4,130 mm |
| Max. digging reach at ground level | 4,070 mm |
| Max. digging depth | 2,555 mm |
| Max. digging height | 3,630 mm |
| Max. dumping height | 2,550 mm |
| Price | |
| Price | €21,500 + VAT |
Zoomlion ZE20G: questions
How much is the Zoomlion ZE20G in Ireland?
The Zoomlion ZE20G mini excavator is €21,500 + VAT from O'Regan Plant Sales. Attachments, delivery and finance are quoted on request: call 021 488 9800 or send an enquiry.
Where can I buy the Zoomlion ZE20G in Ireland?
O'Regan Plant Sales at Watergrasshill Business Park, Co. Cork sells the Zoomlion ZE20G and delivers it anywhere in Ireland.
What is the operating weight of the Zoomlion ZE20G?
The Zoomlion ZE20G has an operating weight of 1,970 kg. Full manufacturer figures are in the specifications table and spec sheet on this page.
Who services the Zoomlion ZE20G?
O'Regan Plant Sales services and supplies genuine parts for the Zoomlion machines it sells, from its depot in Co. Cork.
